Small Zamak Alloy Die Casting Machine Spareparts
Product Decription:

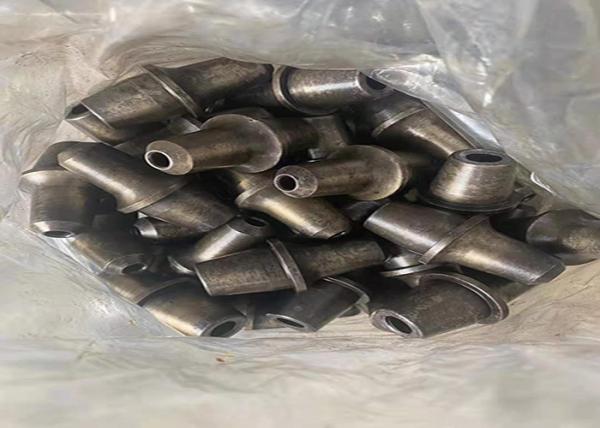

This is spare parts which is suitable for different size of zinc die casting machines, this called heating head which is used for heating the materials, we can provide you different size as per your drawings!
hot chamber die casting machine specification
| Item | Unit | RDH18 | RD38T | RD50T | RD88T | RD138T |
| Die Locking Force | KN | 180 | 380 | 500 | 880 | 1380 |
| Die Stroke | MM | 150 | 200 | 235 | 250 | 290 |
| Ejection Fore | KN | / | 34 | 52 | 52 | 110 |
| Ejection Stroke | MM | / | 40 | 60 | 60 | 85 |
| Die Thickness(Min~Max) | MM | 100-300 | 100-330 | 100-340 | 100-350 | 150-450 |
| Die Dimension | MM | 385×360 | 450×480 | 470×503 | 535×578 | 620×670 |
| Tie-bar Inner Spacing(V×H) | MM | 236×236 | 290×290 | 310×310 | 357×357 | 415×415 |
| Tie Bar Diameter | MM | 40 | 50 | 56 | 63 | 75 |
| Injection Port Position | MM | / | 0,-40 | 0,-50 | 0,-60 | 0,-80 |
| Injection Stroke | MM | 90 | 125 | 130 | 130 | 150 |
| Traverse Stroke | MM | 150 | 150 | 190 | 190 | 200 |
| Injection Fore | KN | 27 | 40 | 55 | 90 | 110 |
| Plunger Tip Diameter | MM | 35 | 40 | 45 | 50 | 55 | 50 | 60 | 65 |
| Specific Presure | Mpa | 28 | 32 | 25.4 | 26.9 | 22.2 | 34 | 38.9 | 33.1 |
| Shot weigh(Zn) | kg(Zn) | 464 | 0.78 | 0.98 | 1.26 | 1.53 | 1.26 | 2.1 | 2.46 |
| Hydraulic Pressure | Mpa | 7 | 10.5 | 10.5 | 10.5 | 14 |
| Electric Motor Capacity | KW | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Volume of Crucible(Zn) | L/kg(Zn) | 20/150 | 50/325 | 55/360 | 55/360 | 55/360 |
| Volume of Oil | L | 180 | 200 | 200 | 240 | 300 |
| Machine Weight | TON | 1.5 | 3 | 3.4 | 3.6 | 6 |
| Over All Dimensions | m(L×W×H) | 2.5×1.2×1.7 | 3.47×1.3×1.7 | 3.95×1.38×1.9 | 3.95×1.38×1.9 | 4.51×1.51×2.3 |
| Item | Unit | RD160T | RD200T | RD300T | RD400T |
| Die Locking Force | KN | 1600 | 2000 | 3000 | 4000 |
| Die Stroke | MM | 340 | 390 | 460 | 550 |
| Ejection Fore | KN | 110 | 110 | 150 | 180 |
| Ejection Stroke | MM | 85 | 100 | 95 | 125 |
| Die Thickness(Min~Max) | MM | 150-550 | 200-580 | 250-660 | 300-750 |
| Die Dimension | MM | 670×670 | 760×760 | 870×870 | 1030×1030 |
| Tie-bar Inner Spacing(V×H) | MM | 465×465 | 510×510 | 560×560 | 620×620 |
| Tie Bar Diameter | MM | 80 | 90 | 110 | 130 |
| Injection Port Position | MM | 0,-80 | 0,-100 | 0,-125 | 0,-125 |
| Injection Stroke | MM | 150 | 175 | 200 | 230 |
| Traverse Stroke | MM | 200 | 214 | 255 | 340 |
| Injection Fore | KN | 110 | 130 | 158 | 182 |
| Plunger Tip Diameter | MM | 60 | 65 | 70 | 75 | 70 | 75 | 70 | 80 |
| Specific Presure | Mpa | 38.9 | 33.1 | 34.6 | 30.1 | 41.1 | 35.8 | 48.3 | 37 |
| Shot weigh(Zn) | kg(Zn) | 2.1 | 2.46 | 3.33 | 3.83 | 3.81 | 4.37 | 4.4 | 5.7 |
| Hydraulic Pressure | Mpa | 14 | 14 | 14 | 14 |
| Electric Motor Capacity | KW | 15 | 18.5 | 18.5 | 22 |
| Volume of Crucible(Zn) | L/kg(Zn) | 55/360 | 110/720 | 110/720 | 200/1350 |
| Volume of Oil | L | 300 | 400 | 600 | 800 |
| Machine Weight | TON | 6.5 | 8.5 | 11 | 17.5 |
| Over All Dimensions | m(L×W×H) | 4.8×1.51×2.3 | 5.6×1.7×2.4 | 5.6×1.7×2.4 | 7.4×1.9×2.55 |
